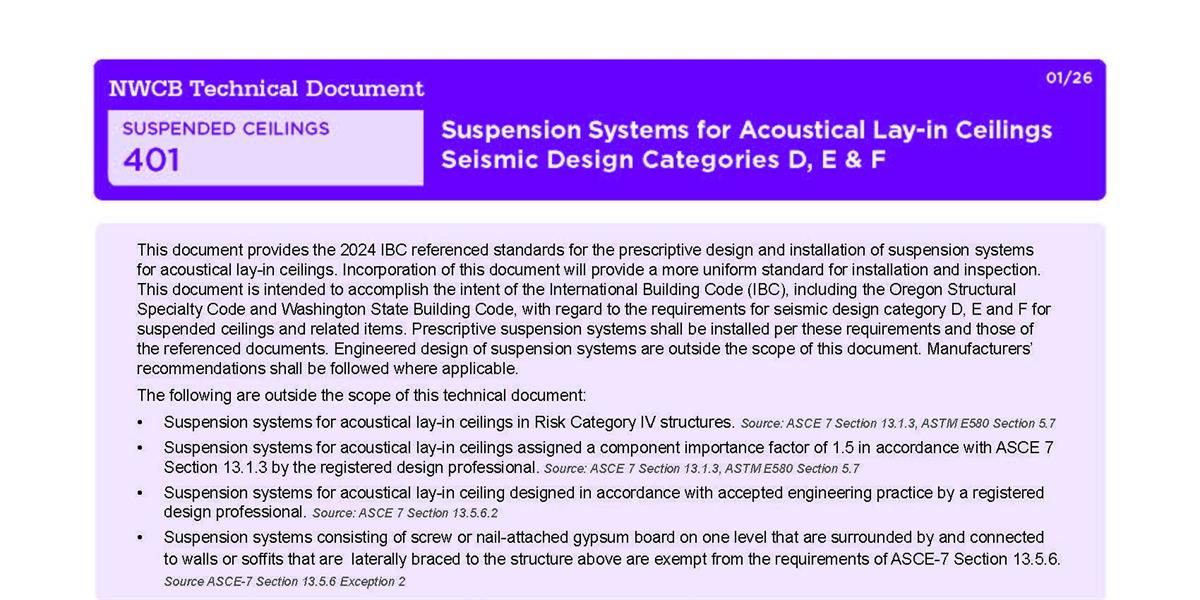

The Northwest Wall and Ceiling Bureau has released an updated edition of NWCB 401 – Suspended Ceilings: Suspension Systems for Acoustical Lay-in Ceilings in Seismic Design Categories D, E & F. The document serves as a practical reference tool for installing contractors, inspectors, and designers to locate, interpret, and cite applicable code provisions and industry standards governing suspended acoustical ceilings in higher seismic design categories.
Alignment with Current Code Cycle
The updated NWCB 401 references the 2024 International Building Code (IBC) and ASCE 7-22, replacing the 2021 IBC and ASCE 7-16 references from the prior 02/22 edition. ASTM references have been updated to current editions of applicable ceiling suspension and installation standards, including ASTM C635, ASTM C636, and ASTM E580. This alignment ensures that plan review, submittals, and inspections are grounded in the same source documents jurisdictions will apply as they adopt the 2024 code cycle.
Key Changes for Ceiling Installers
From an installer's perspective, the overall framework remains familiar. The document continues to direct users to requirements for heavy-duty main beams, 12-gauge hanger and splay wires, maximum 4 ft on-center hanger wire spacing, and established seismic bracing concepts. However, several refinements in the underlying source documents will affect submittals, inspections, and field coordination.
Hanger Attachment Capacity. The updated references reflect an increase in minimum required capacity for devices connecting hanger wires to the supporting structure. Earlier language cited a 90 lb minimum capacity at the connection; current language calls for 100 lb minimum capacity. Contractors should confirm that anchors, clips, and other attachment devices used for hanger wire connections are rated to meet or exceed this threshold. This requirement should be considered together with the allowable service-load limits that apply to specific fastener types, such as power-actuated fasteners.
Light Fixture Restraint. The updated edition reflects changes in how the referenced standards address light fixture restraint for fixtures weighing between 10 lb and 56 lb. Fixtures weighing less than 10 lb continue to require a single slack 12-gauge safety wire connected to the structure above. Fixtures weighing more than 10 lb and up to 56 lb now require two 12-gauge safety wires connecting the fixture housing to the structure above. This represents a change in emphasis from earlier language that focused on direct structural support wording for this weight range. Fixture support methods should be coordinated with the engineer of record and the authority having jurisdiction to confirm whether supplemental framing or independent support is required. Fixtures weighing more than 56 lb remain required to be supported directly from the structure above by approved hangers.
Perimeter Detailing. The updated edition clarifies how proprietary perimeter clips and alternative perimeter details may be evaluated within the existing code framework. Proprietary perimeter clips used with 7/8 in closure angles may be considered where substantiating documentation is reviewed and accepted by the authority having jurisdiction. The document reiterates that spreader bars are not required at perimeters where runners are attached directly to closure angles, and that perimeter clips are to be installed with a minimum of two screws per clip around the entire ceiling perimeter, consistent with cited source standards. These clarifications assist contractors and inspectors in evaluating alternative perimeter details by providing a common reference to underlying code provisions.
Seismic Joints, Bracing, and Trade Coordination
The fundamental seismic design concepts summarized in NWCB 401 remain unchanged. Lateral-force bracing continues to be required for ceiling areas exceeding 1,000 square feet, using vertical struts and splay wires arranged at prescribed spacings and offsets. Seismic separation joints remain required to subdivide large ceiling areas into sections no greater than 2,500 square feet, with a maximum long-to-short dimension ratio of 4:1. Each area must accommodate ±¾ in (1½ in total) of horizontal movement in the plane of the ceiling.
The document continues to highlight coordination with other trades. Where ceilings are not rigidly braced, sprinkler penetrations must allow for horizontal movement through oversized rings, sleeves, or approved flexible sprinkler heads. Mechanical terminals and diffusers remain subject to tiered support and safety-wire provisions based on component weight.
Purpose of the Update
By updating NWCB 401 to track the current IBC, ASCE 7, and ASTM editions, NWCB provides a consolidated reference that assists installers, designers, and code officials in locating and comparing applicable requirements governing suspended acoustical ceilings in Seismic Design Categories D, E, and F. For contractors who already use NWCB 401 as a field reference, the 2026 update is evolutionary rather than disruptive. The document continues to function as a practical roadmap to existing codes and standards—highlighting current language, clarifying common points of contention, and supporting more efficient coordination between field personnel and the authority having jurisdiction.
